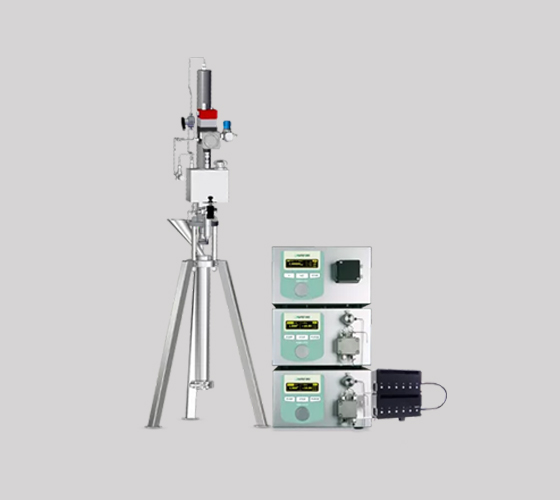

Preparative Liquid Chromatography System
Preparative Liquid Chromatography System
LC-1000 Preparation Configuration List
The preparative high-performance liquid chromatography system is a liquid phase equipment used to separate the mixture after the synthesis reaction from the natural substance, refine the target compound, and recover the high-purity target compound. The single loading amount is from g level to kg level. This product is very suitable for the purification production needs of universities, pharmaceutical factories, chemical industry, scientific research units, etc., and solves the time-consuming and labor-consuming problems of traditional atmospheric pressure chromatography systems.
Features
| Serial Number | Name | Quantity | Remark |
| 1 | P1300/P1600/P1001L/P1003L High Pressure Infusion Pump | 2 | 300ml/600ml/1000ml/3000ml Pump Head Optional |
| 2 | UV2000 UV-Vis Dual Wavelength Detector Includes Preparative Flow Cell | 1 | Dual Wavelength, Deuterium Lamp Standard Configuration |
| 3 | Manual Injection Valve/Injection Pump | 1 | Optional Sampling Method According to Actual Needs |
| 4 | Easychrom Chromatography Workstation | 1 | Comply with CFDA, Audit Trail and Other Regulatory Requirements |
| 5 | Preparative Column | 1 | ID80mm-300mm Optional |
| 6 | System Startup Kit | 1 | Starting Tools and Accessories |
| 7 | Static Mixer | 1 | According to Different Flow Rate Configuration |
| 8 | Preparation of Automatic Fraction Collection Valves | 1 | Optional Unit |
Remarks : The static mixer and a high-pressure infusion pump can be removed for the isocratic configuration, and the sampling pump can be configured according to the actual situation of the customer.
