Semi-Preparative Liquid Chromatography System
Semi-Preparative Liquid Chromatography System

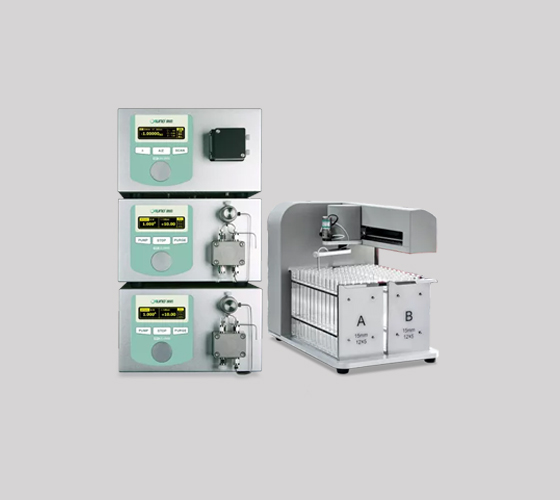

LC-2000 Semi-Preparative Liquid Chromatography System
The semi-preparative high-performance liquid chromatography system is a liquid phase equipment used to separate the mixture after the synthesis reaction from the natural substance, refine the target compound, and recover the high-purity target compound. The single loading amount is mg~g level. This product is very suitable for the purification of monomers in universities, pharmaceutical factories, and scientific research units for structural identification, small-scale preparation, and process research and development.
LC-2000 Semi-Preparation Configuration List
| Serial Number | Name | Quantity | Remark |
| 1 | P2050/P2100/P2200 High-Pressure Infusion Head | 2 | 50ml/100ml/200ml Pump Head Optional |
| 2 | UV2000 UV-Vis Dual Wavelength Detector Contains Semi-Preparative Flow Cell | 1 | Dual Wavelength, Deuterium Lamp Standard Configuration |
| 3 | Manual Injection Valve | 1 | Optional Quantitative Tube According To Needs |
| 4 | Easychrom Chromatography Workstation | 1 | Comply With CFDA, Audit Trail and Other Regulatory Requirements |
| 5 | Semi-Preparative Columns | 1 | ID10mm-80mm Optional |
| 6 | System Startup Kit | 1 | Starting Tools and Accessories |
| 7 | Solvent Tray | 1 | |
| 8 | Static Mixer | 1 | According to Different Flow Rate Configuration |
| 9 | FC1000 Automatic Fraction Collector | 2 | Optional Unit |
Remarks : The static mixer and a high-pressure infusion pump can be removed for the isocratic configuration, and a dynamic axial compression column can be configured for a chromatographic column of 50mm-80mm.
